Pride EP2461, 12V 30A Normally Open 26RA Relay Triumph Spitfire MGB CHM68 SRB520

SKU: EP2461

£7.15 GBP
£7.15 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

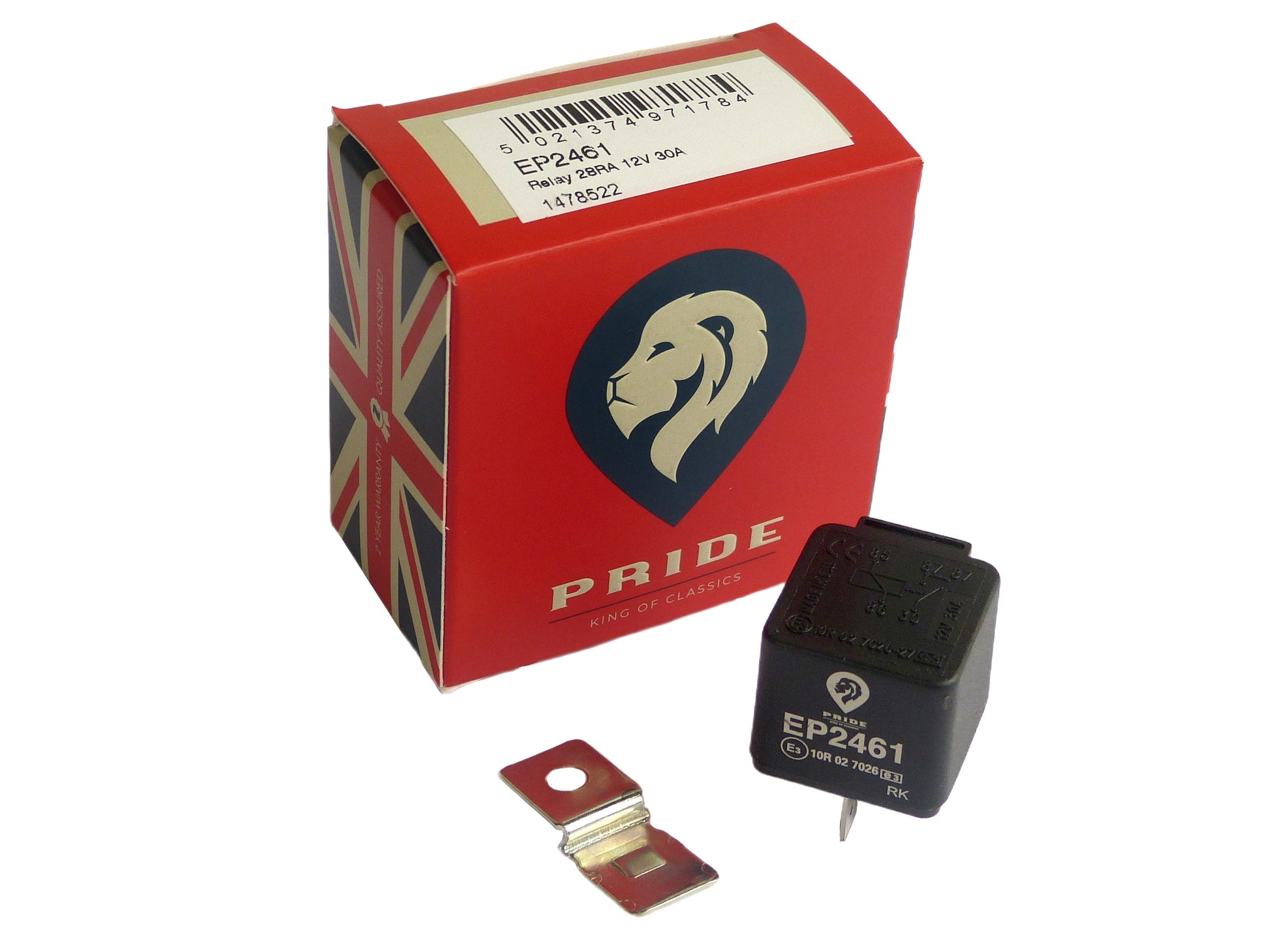

Brand new Lucas type 26RA classic car relay with push on Lucar terminals, supplied complete with mounting bracket.

As fitted to a wide range of vehicles / Classic Cars such as Triumph Spitfire, MGB, Jaguar XJ6 XJ12 XJS, Daimler Sovereign Hearse Limousine and makes an ideal general purpose relay for switching high current accessories like spot / fog lights, horns etc, also very useful for trikes, specials and the kit car enthusiast / builder.

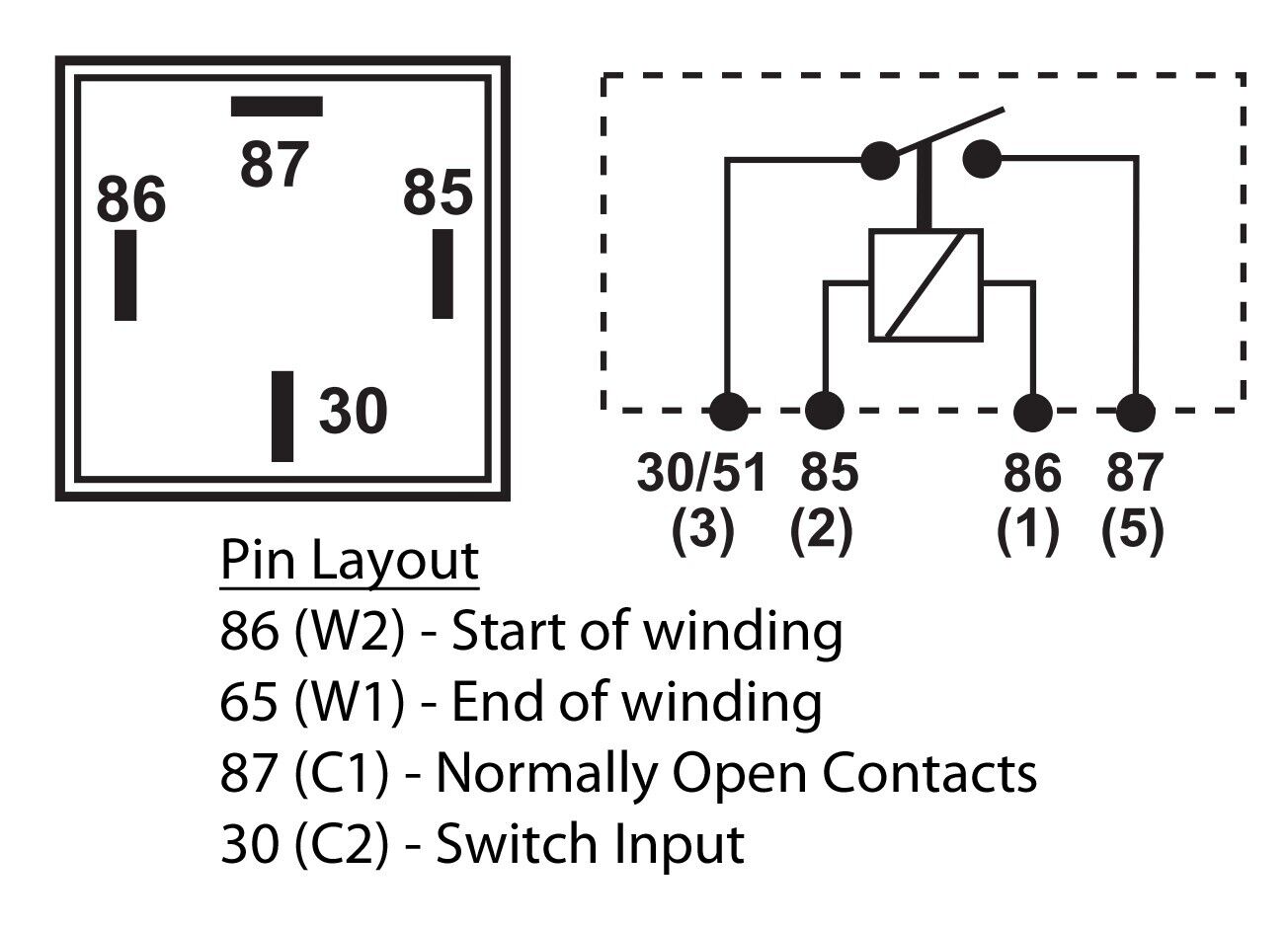

  • Terminals 86 (W2) & 65 (W1) Relay coil winding.
  • Terminals 87 (C1) and 30 (C2) Normally Open Circuit.

See photos for the wiring diagram.

See our shop for more classic car and motorcycle parts, including those for Triumph, MG, Mini, Austin Healey, BSA and Norton.

View full details

Product Details

Brand Pride
Colour Silver, Black
Item condition New
Manufacturer type Aftermarket
Amps 30 Amps
Connector type Male
Item includes 1 x Relay
Mounting style Clip On
Number of contacts 4
Number of pins 4
OEM part numbers CHM68, SRB520, SRB402, 072712, 81DB15K235, AZ26996, 141951253A, DAC1027, CHM68SQ
Right or Left Hand Drive Both
Terminal type Blade
Voltage 12 Volts
